Basic Info.

Model NO.	TN-001
Installation	Vertical
Fan Number	2 to 6 PCS Fan
Capacity	12u to 47u
Certification	CE, ISO, RoHS
Condition	Used
Color	Ral7035, Ral9004, etc
Logo	Silk Print, Aluminum Sticker, Rubber Sticker
Packing Style	Assembled or Dis-Assembled
Shipping	Sea, Air, Train, Truck
Material	SPCC Cold Rolled Steel
Certificate	CE. RoHS
Transport Package	Carton
Specification	CE, RoHS
Trademark	TNE, OEM, ODM
Origin	Ningbo China
HS Code	8517709000
Production Capacity	500, 000

Product Description

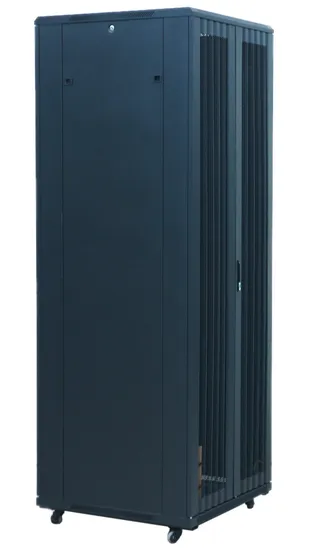

Arc Mesh Front Door Server Cabinet for HP, DELL serversDescription > Exquisite design with precise dimension and craftsmanship; > High-density ARC vented front single &rear dual doors, Lockable door and side panels for system security; > Fully adjustable vertical mounting rails; > Swiveling wheels and legs can be jointly installed to withstand up to 800kg maximum static load; > Lockable wiring holes on top/bottom, size of the large hole at the bottom adjustable;Standard: Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standardMaterial: High grade cold rolled steel.Thickness: Mounting profile: 2.00mm others: 1.2--1.5mmLoading Capacity: Static Loading: 800kgsSurface finish: Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.Degree of Protection IP20Body Color: RAL7035, RAL9004 etc.Optional Accessory: > Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet > 19'' keyboard frame (350mm, 550mm, 650mm, 730mm) > 1U, 2U support board > Vertical Cable manager > 19'' Power distribution unit(PDU) > 19'' Blanking plate 1U, 2U, 4U > Heavy duty castor, Heavy duty castor with braker > Optional lock for side panels > Earth kit And so on... Size Form

FAQ 1) What is your Payment term?---TNE accept T/T, L/C, Western Union. 2) What is your Trade term?---TNE do EXW, FOB, CNF, CIF terms. 3) What is the Loading Port?--- Ningbo or Shanghai port. 4) What is your MOQ?---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list. 5) What is your Product Warranty?---As Europe market, we have CE RoHS and other international safety standard for our products.---As other market, international safety standard certificate is also be provided.

Heavy-Duty Network Cabinet with Integrated Kvm for Easy Device Management

Ningbo Longtu Network Technology Co., Ltd. ( Formly named Ningbo Taina Electronics Compay) own a Brand of "TNE" Mainly offer 19'' network cabinets, 19'' server racks, wall mount cabinet and customized Products, built for your specific requirement.

Year 2003 TNE Founded
Year 2006 TNE gains Export and Import Right
Year 2010 TNE Moved the factory to Guanhaiwei East Industrial Zone, Ocupy 6066 Square Meter.
Year 2014 TNE Changed the name from NINGBO TAINA ELECTRONICS COMPANY to NINGBO LONGTU NETWORK TECHNOLOGY Co., Ltd. Pure Producing Network Cabinet.
TNE have some stable partner From USA, UK, France, Austrial, Egypt, and So on.

TNE mainly Products as below:

Network cabinet
Server Rack
Wall Mount Cabinet
Open Frames
PDU...

TNE Machinery:

CNC Punching Machine: 4 sets
Laser Cutting Machine: 2 sets
Bending Machine: 11 sets

And other small Machines...

Heavy-Duty Network Cabinet with Integrated Kvm for Easy Device Management

Model No.	Capacity(U)	Width(mm)	Depth(mm)	Height(mm)
TN-001	18U	600mm/800mm	600mm/800mm/1000mm	988mm
TN-001	22U	600mm/800mm	600mm/800mm/1000mm	1166mm
TN-001	27U	600mm/800mm	600mm/800mm/1000mm	1388mm
TN-001	32U	600mm/800mm	600mm/800mm/1000mm	1610mm
TN-001	37U	600mm/800mm	600mm/800mm/1000mm	1833mm
TN-001	42U	600mm/800mm	600mm/800mm/1000mm	2055mm
TN-001	45U	600mm/800mm	600mm/800mm/1000mm	2188mm
TN-001	47U	600mm/800mm	600mm/800mm/1000mm	2277mm

TNE owned Painting Line with Environment evaluation certificate
